Securing with Screws

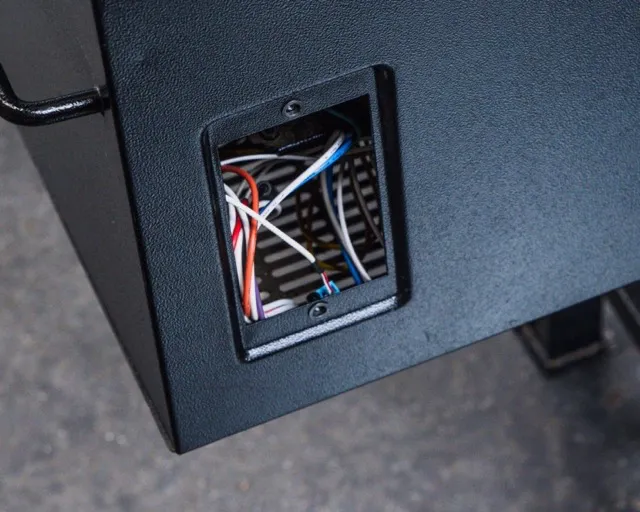

Push all of the wires back into the hopper assembly.

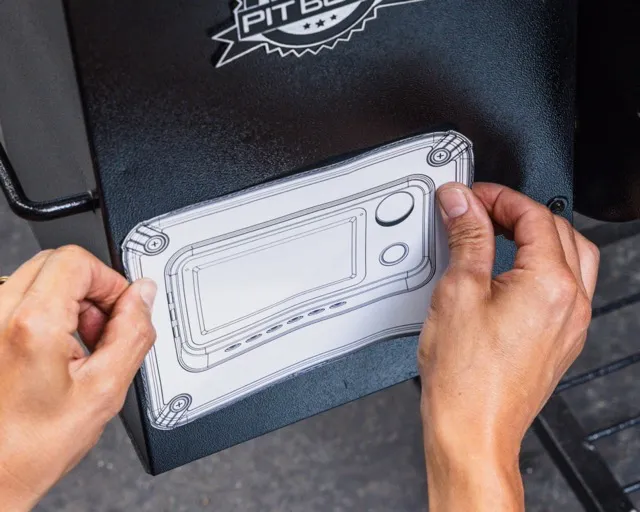

Using the template provided, find the best location for mounting the Pellet Drive. Choose a location that fully covers the hole left by the old controller and allows for easy passage of wires from the Pellet Drive into the hopper assembly. Tape the template in place at this location to mark where the pilot holes will be drilled.

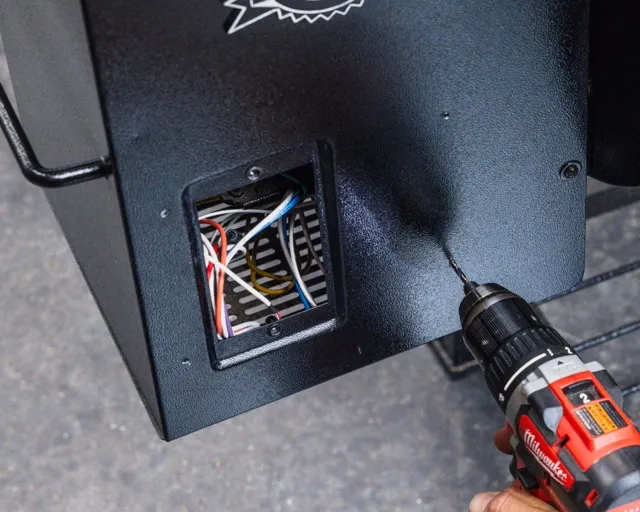

Using a drill with the drill bit (provided), mark the 4 locations as noted on the template.

Remove the template and completely drill out the 4 marked locations for
mounting.

Pull the wiring harness and temperature probe wire back from the hopper assembly through the exposed hole. Secure wiring harness to Pellet Drive making sure it is fully seated (pushed in).

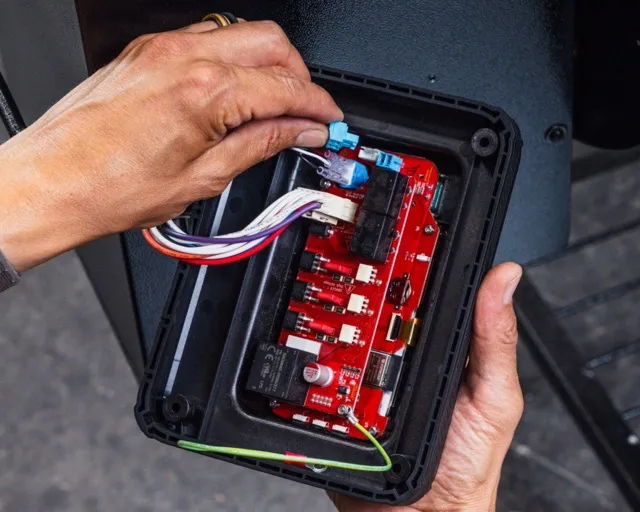

Attach the blue connector (provided) to corresponding connector on new Pellet Drive making sure it is fully seated.

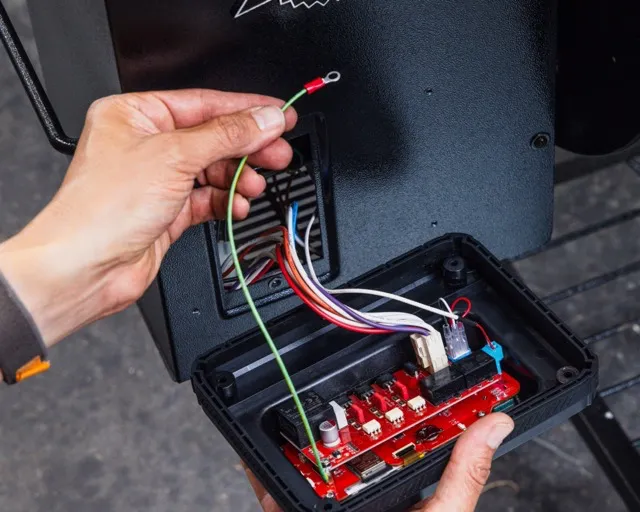

Attach the green wire from the Pellet Drive to one of the original controller mounting points, securing it with the same screw that was originally used.

Gently push the wires back into the hopper.

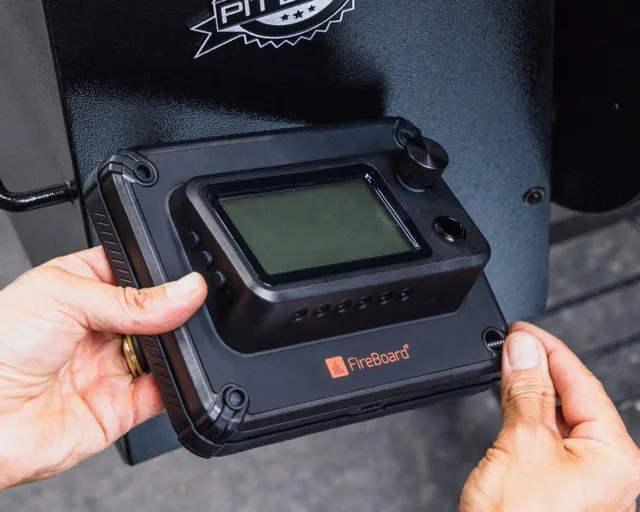

Place the screws (provided) in the corners of the Pellet Drive.

Line up the Pellet Drive to the previously drilled holes.

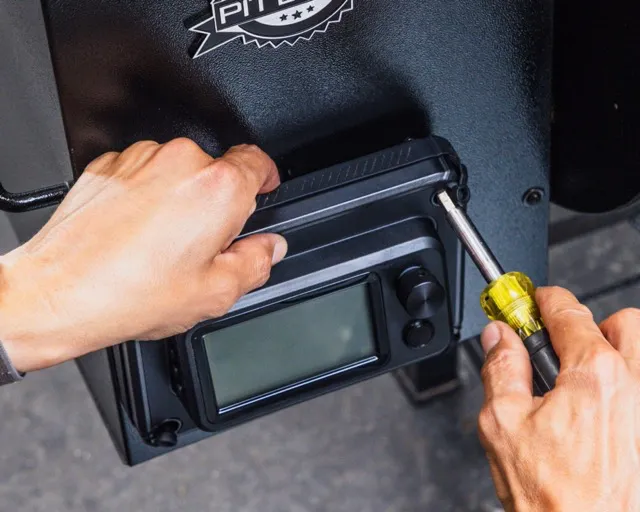

Using a Phillips screwdriver, attach the Pellet Drive to the pellet smoker making sure no wires are trapped under the gasket of the Pellet Drive.

Install is complete!

Plug-in and power up by pressing in the front power button on the Pellet Drive.

Once powered on, the unit will display the Pellet Drive Setup Screen. Scroll the encoder knob to highlight the SAVE button. Press the encoder knob to save the setup.

Press the encoder knob to IGNITE the smoker

Rotating the encoder knob will set the desired pit temperature.

Please refer to the Quick Start Guide on downloading and setting up the FireBoard App. The Quick Start Guide also provides additional details about your new Pellet Drive.
